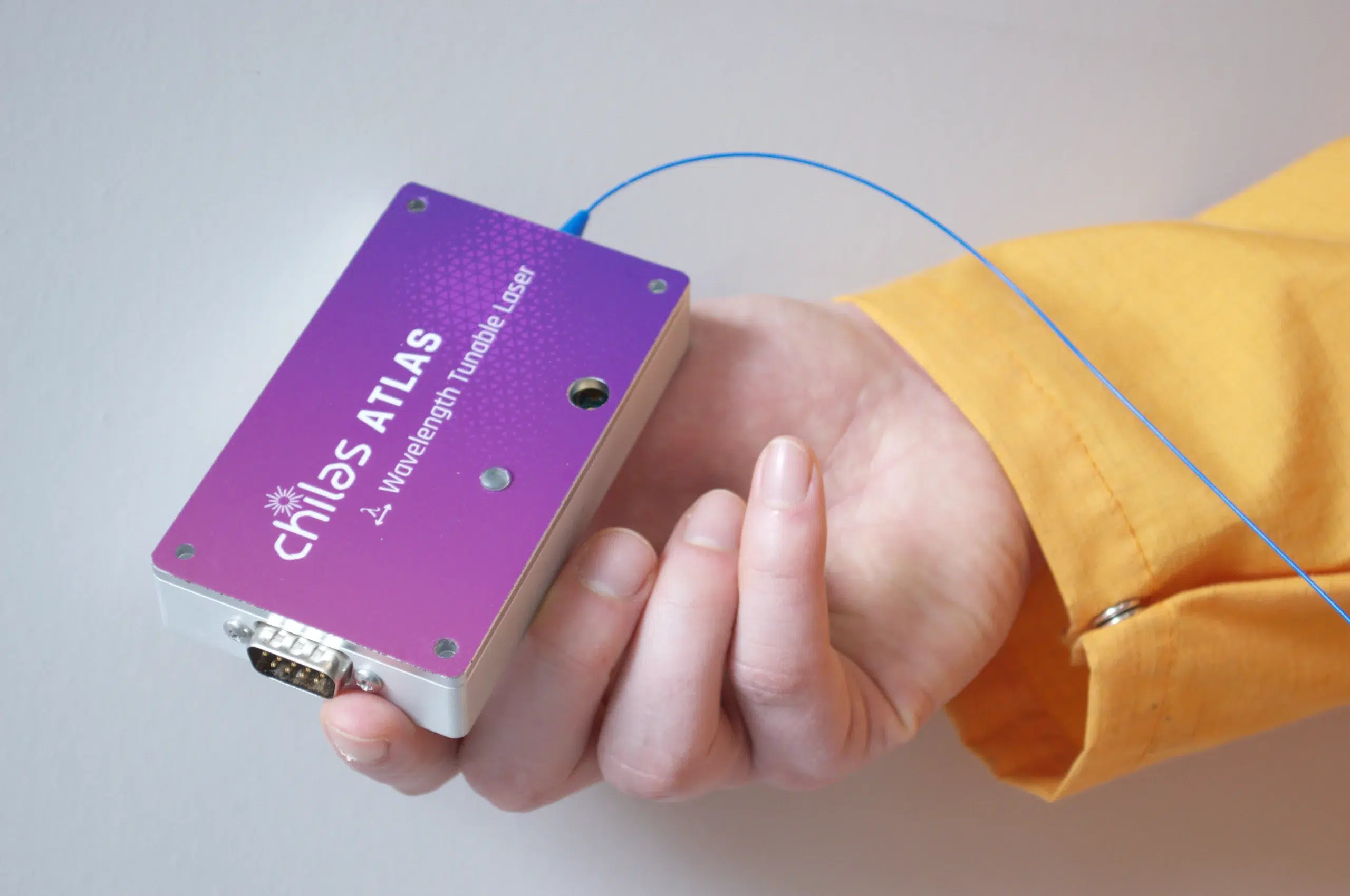

ATLAS 1600 – C+L band wavelength-tunable laser
A wavelength tunable laser for the C+L band for advanced telecom applications where the use of the C-band only is not sufficient.
Laser Specifications
| Parameter | Specified Values |
|---|---|
| Center wavelength | 1590 nm ± 5 nm |
| Wavelength range | 100 nm |
| Wavelength resolution | 10 pm |
| Wavelength accuracy | ± 10 pm |
| Wavelength switching time | 20 ms |
| Fiber output power | ≥ 5 dBm / 3 mW |
| Intrinsic linewidth | ≤ 10 kHz |
| Side-mode suppression ratio | ≥ 50 dB |
| RIN | ≤ -145 dBc/Hz @ 1 MHz |
| Modulation bandwidth of diode current | 500 kHz |
Key features
- Wide wavelength tunability ranging from 1540 nm – 1640 nm
- Ultra-narrow linewidth
- Low RIN
- Excellent SMSR
- Fully integrated with no moving parts, enabling switching between wavelengths instantly
- Excellent repeatability
- Software based wavelength calibration
- Easy to set-up and use
- Compact size (100*60*20 mm)
- Fiber connector PM FC/APC
Applications
- Tele-communications
- Sensing market (biomedical, infrastructure and vibration)
- Optical Device Testing
- Spectroscopy
- Coherent Communications
ATLAS Adapter
The base module comes equipped with a standard DE9 connector. We offer an add-on module featuring connectors for power, communication (USB-C) and trigger signals (SMA).
To meet laser safety standards, this module adds key control and a remote interlock connector.
Intuitive Software for Seamless Laser Operation
For intuitive operation and control, we provide a software interface which includes a graphical user interface (GUI) for straightforward wavelength setting and tuning, along with a Python library for advanced laser control functions.
Download the ATLAS Graphical User Interface here. Check out our online Python library on our Github profile.
Sales inquiry ATLAS 1600
Other Laser Products

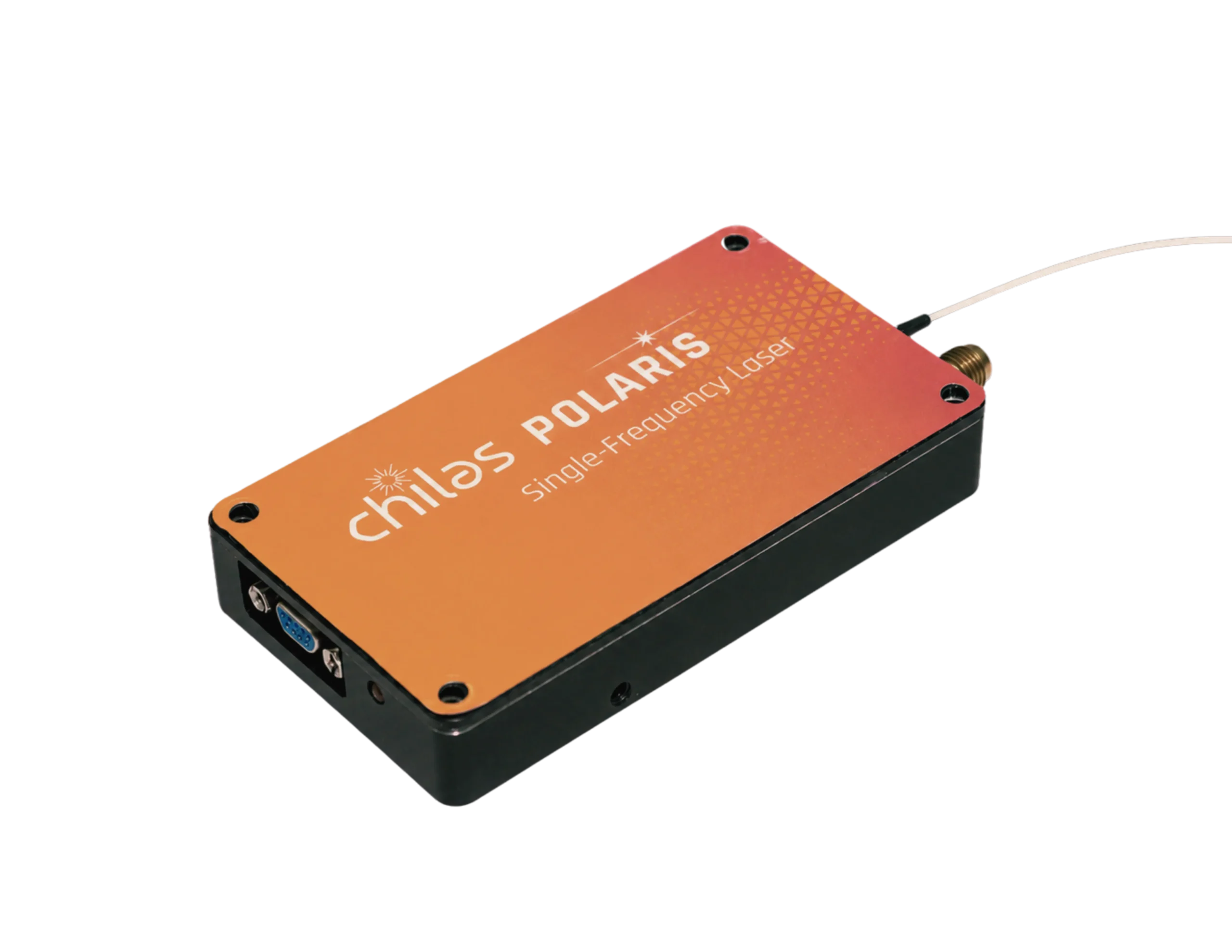

Chilas POLARIS
