Chilas POLARIS C-band – Frequency-Stabilized Laser
The Chilas Polaris C-band is a frequency-stabilized, single-frequency laser offering ultra-low phase and intensity noise, excellent spectral purity, and exceptional long-term stability of both optical frequency and output power. Precisely configured to your required wavelength, it is built for high-performance sensing and coherence-based applications.
Key features
- Selectable ITU channel with 50 GHz spacing
- C-band
- Excellent stability
- Ultra-narrow linewidth
- Ultra-low RIN
- Compact housing
- Easy to set up and use

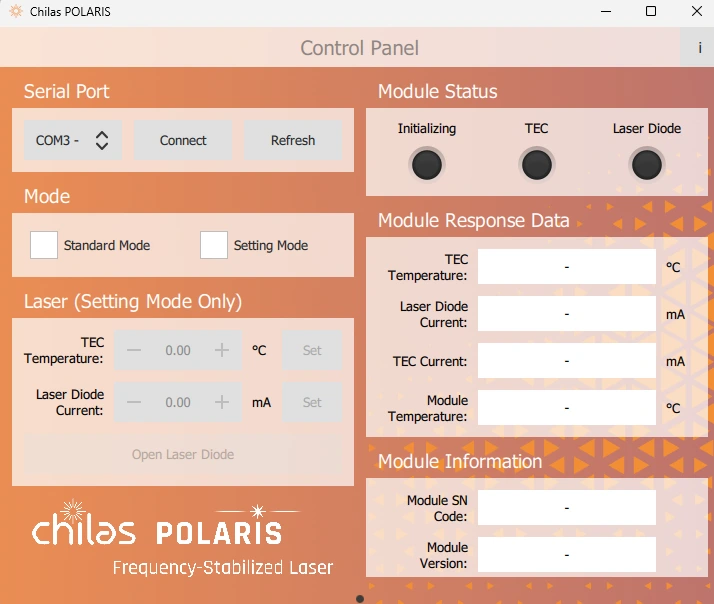

- Manual temperature and current tuning through software
- High modulation depth and bandwidth
- RoHS certified
Applications
- LiDAR
- Quantum Key Distribution
- Telecommunications
- Free-Space Optical Communication Systems
- Metrology
Optical specifications
| Parameter | Specification |
|---|---|
| Wavelength | Selectable ITU channel |
| Integral linewidth | < 10 kHz at 10ms |
| Fiber output power | ≥ 13 dBm |
| Modulation bandwidth | 0.5 MHz |
| Modulation depth | 2.5 GHz (at 1 kHz) |
| Package | 85*47*18 mm |
| Fiber connector | PM FC/APC |
POLARIS C-band laser: Use Cases & Application Notes
Sales Inquiry Polaris C-band
