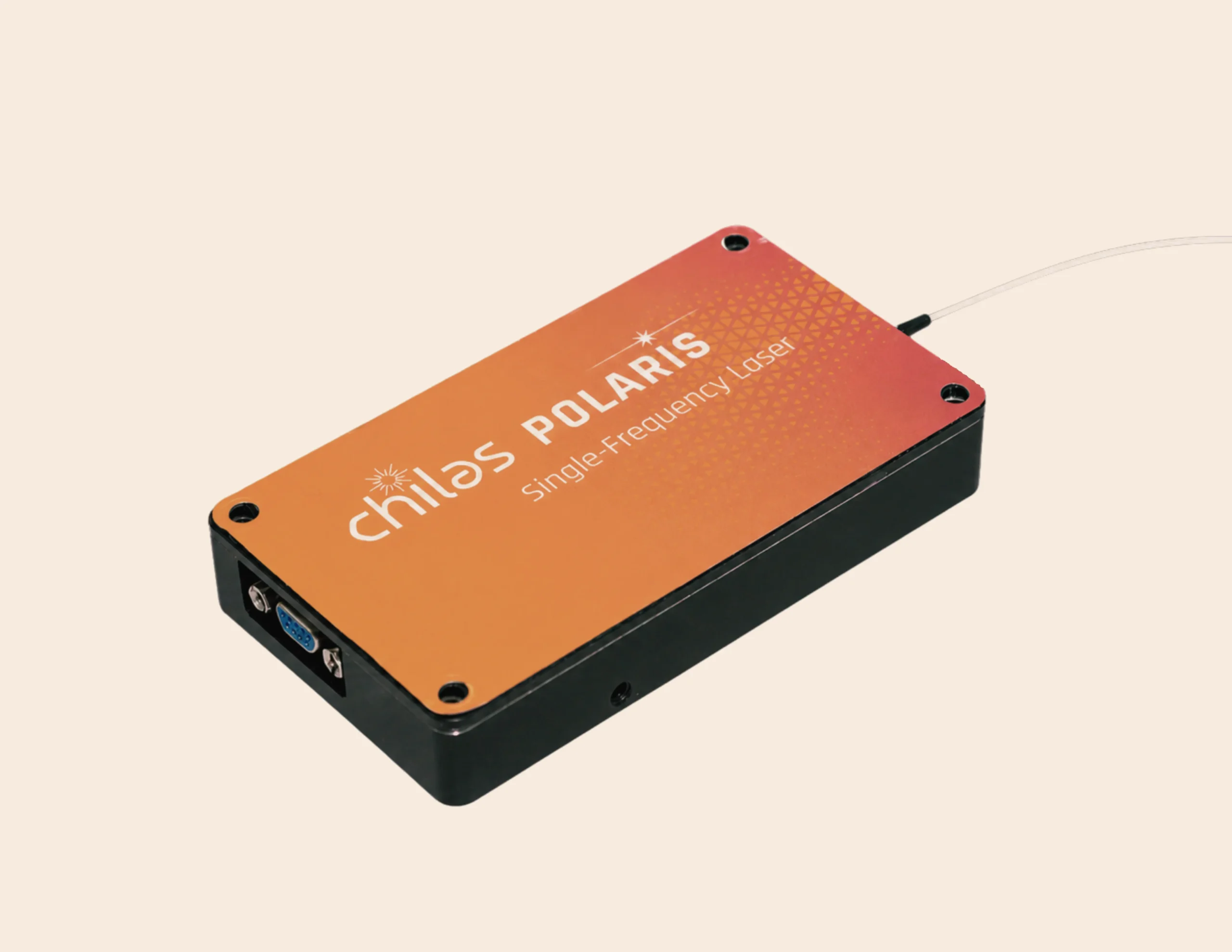

Chilas POLARIS O-band – Single-Frequency Laser
The Chilas Polaris O-band is a single-frequency laser offering ultra-low phase and intensity noise, excellent spectral purity, and exceptional long-term stability of both optical frequency and output power. Precisely configured to your required wavelength, it is built for high-performance sensing and coherence-based applications.
Key features
- Center wavelength at 1310 nm
- Ultra narrow linewidth
- Low phaise noise
- High optical power
- Stable power and wavelength
- In-built isolator
- Easy to set-up and use
Applications
- Optical Fiber Sensing
- Coherent Optical communication
- Quantum
- Scientific instrumentation
- Fiber-optic hydrophones/ ultrasonic sensing
Optical specifications
| Parameter | Specification |
|---|---|
| Center Wavelength | 1310 nm |
| Intrinsic linewidth | ≤ 3 kHz |
| Output Power | ≥ 20 mW |
| Relative Intensity Noise | -145 dB/Hz |
| SMSR | 55 dB |
| Polarization Extinction Ratio | 23 dB |
| Package | 85*47*14 mm |
| Fiber connector | PM FC/APC |
