Chilas POLARIS – Frequency-Stabilized Laser
Chilas Polaris is a single-frequency, ultra-stable laser precisely set at the wavelength your application demands. The robust design of our frequency-stabilized laser ensures exceptionally low phase- and intensity noise, delivering great long-term stability in both output frequency and power.
Key features
- Selectable ITU channel with 50 GHz spacing
- Excellent stability
- Ultra-narrow linewidth
- Ultra-low RIN
- Compact housing
- Easy to set up and use
- Manual temperature and current tuning
- through software
- High modulation depth and bandwidth
- RoHS certified
Applications
- LiDAR
- Quantum Key Distribution
- Telecommunications
- Free-Space Optical Communication Systems
- Metrology
Optical specifications
| Parameter | Specification |
|---|---|
| Wavelength | Selectable ITU channel |
| Integral linewidth | < 10 kHz at 10ms |
| Fiber output power | ≥ 13 dBm |
| Modulation bandwidth | 1.5 MHz |
| Modulation depth | 2.5 GHz |
| Package | 85*47*18 mm |
| Fiber connector | PM FC/APC |
Sales Inquiry
Other Laser Products
Chilas ATLAS
Chilas ATLAS is a wavelength-tunable laser module available at multiple wavelengths (685, 850,1550, 1600 and 1700 nm), delivering a broad tuning range, high resolution, and ultra-narrow linewidth.

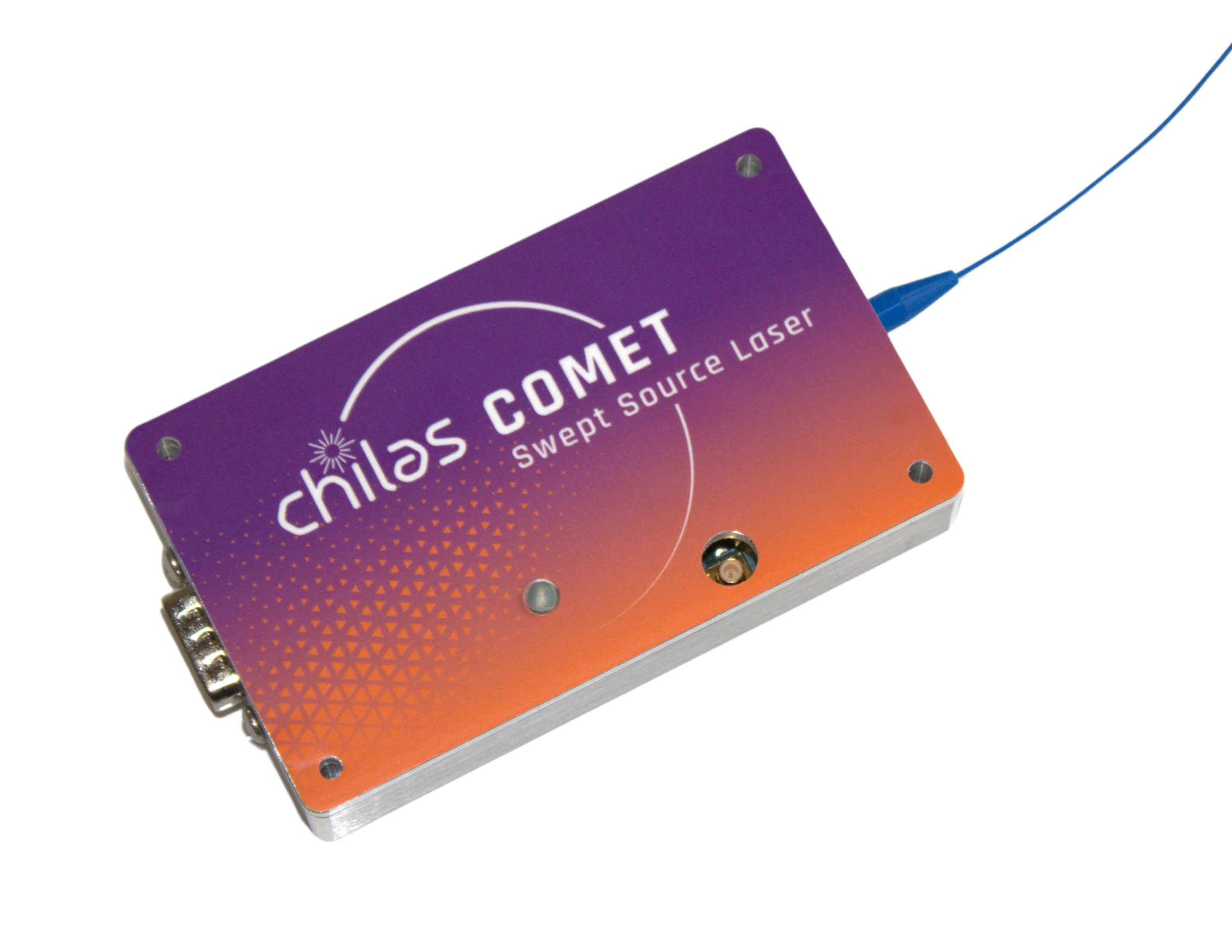

Chilas COMET
